Synchronous HDLC Communication Based on RS-422 Interface

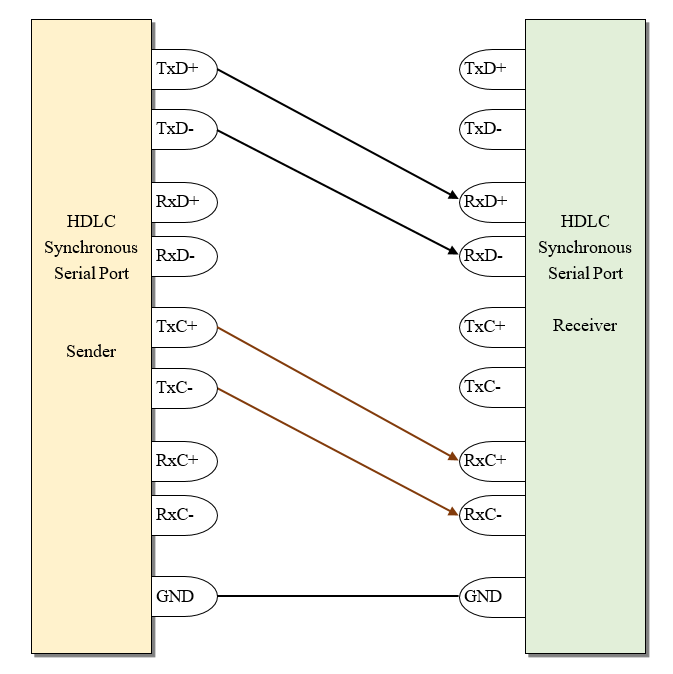

1. RS-422 simplex HDLC communication

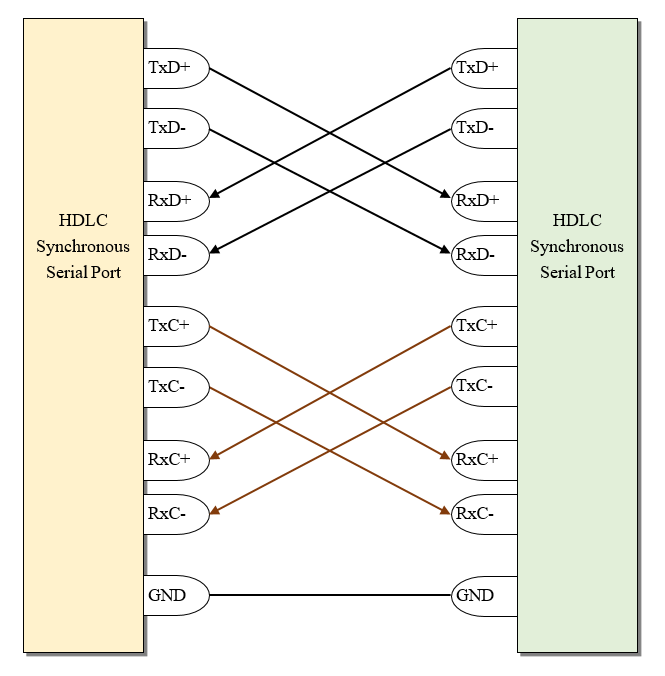

2. RS-422 full duplex HDLC communication

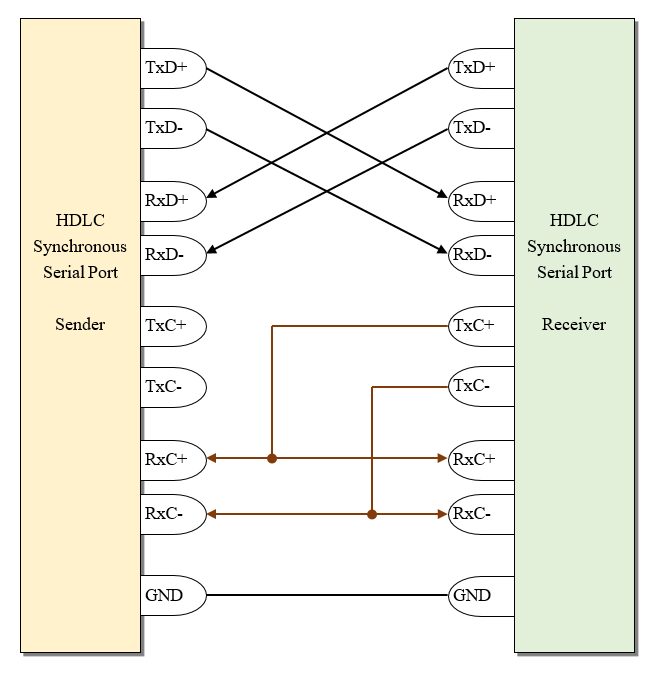

3. External clock sending mode

    External clock sending mode, the receiver provides the clock.
