Train HDLC synchronous communication working mode

HDLC protocol is a common protocol for train communication. In order to reduce the number of signal lines, NRZI coding format is usually used.

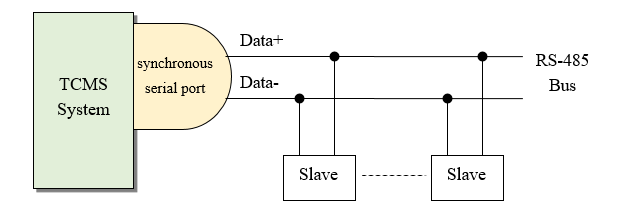

The following diagram shows half-duplex HDLC communication based on RS-485 bus for train TCMS system or TMS system:

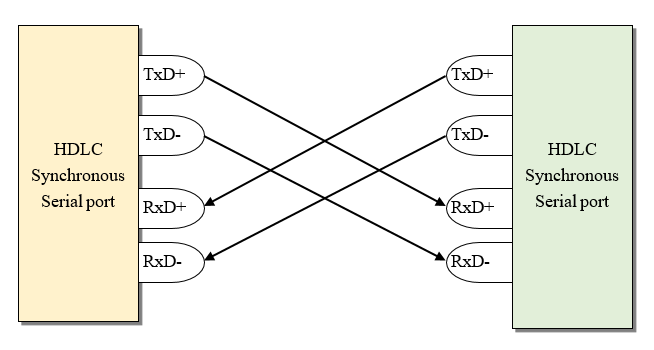

Some trains will also use RS-422 full-duplex mode, as shown in the following figure:
