Definition of MVB-ESD Interface

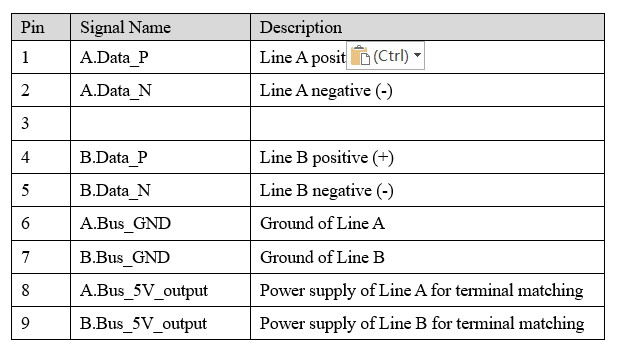

The pin definition of the DB9 connector for the MVB Electrical Short Distance (ESD) medium is as follows:
