Interface Definition of Train Ethernet Connector M12
The 100 Mbps Ethernet connector of the train adopts the M12 D-Code connector, in accordance with the specification IEC 61076-2-101.

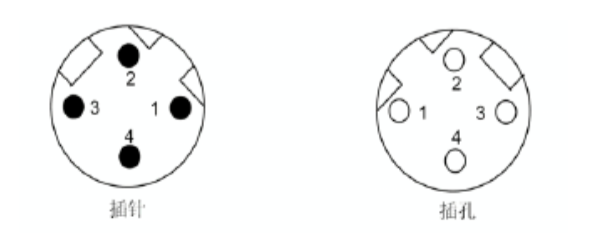

The device end is an M12 female (jack), and the line end is an M12 male (pin). The pin definitions are as follows:
