1x 10/100M auto-negotiation Ethernet interface
2x CAN bus interface with isolation
Each CAN channel supports independent filtering settings to reduce the bus load by configuring desired CAN ID range
Each CAN channel supports independent configuration of the number of packaged frames and the time interval for packet division, meeting various packet division requirements of users
Each CAN channel supports independent configuration of working modes, meeting the requirements of various application scenarios
Each CAN channel supports independent configuration of 32 groups of UDP destination IP and port. Therefore, multiple users can manage the same CAN port
Provides comprehensive configuration and debugging tools for quick start-up
Perfect isolation protection, industrial wide temperature
Overview
Introduction

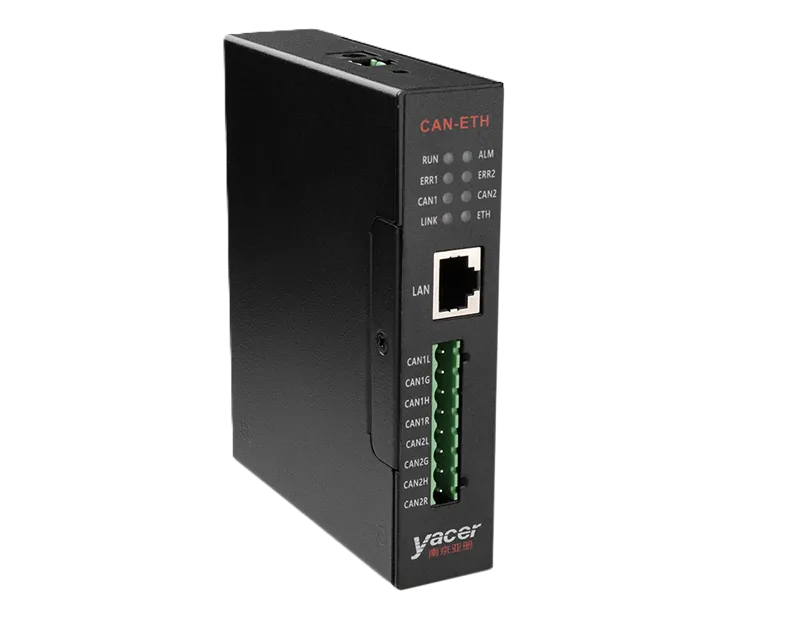

The Yacer CAN-ETH protocol Converter is equipped with 1× 10/100M Ethernet port and 2× CAN ports. It enables interconnection and intercommunication between CAN bus and Ethernet network, and supports bidirectional transparent transmission of CAN data and Ethernet data.
Industrial wide temperature, complete isolation and protection, compact size, suitable for industrial communication networks.
Applications
• Protocol conversion between CAN and Ethernet interface
• Suitable for industrial communication networks
Specifications
| Item | Parameters | Details |
| CAN interfac | Connector | 1 x 8 pin connector with 5mm pitch (CAN1 and CAN2 each have 4 pins) |
| Interface type | CAN bus isolation interface (CAN 2.0A, CAN 2.0B, ISO 11898) | |
| Baud rate | ≤ 1 Mbps | |
| Isolation | 2.5 kVrms | |
| Ethernet Interface | Connector | 1 x RJ45 |
| Rate | 10/100 Mbps Auto-negotiation | |
| Network protocol | TCP/IP | |
| Programming interface | UDP Server, UDP Client Supporting Unicast/Multicast/Broadcast | |
| Isolation | 1.5 kVrms | |
| ConfigurationManagement | Configuration tool | yacer-FMS configuration management software |
| Configuration interface | Ethernet Interface | |

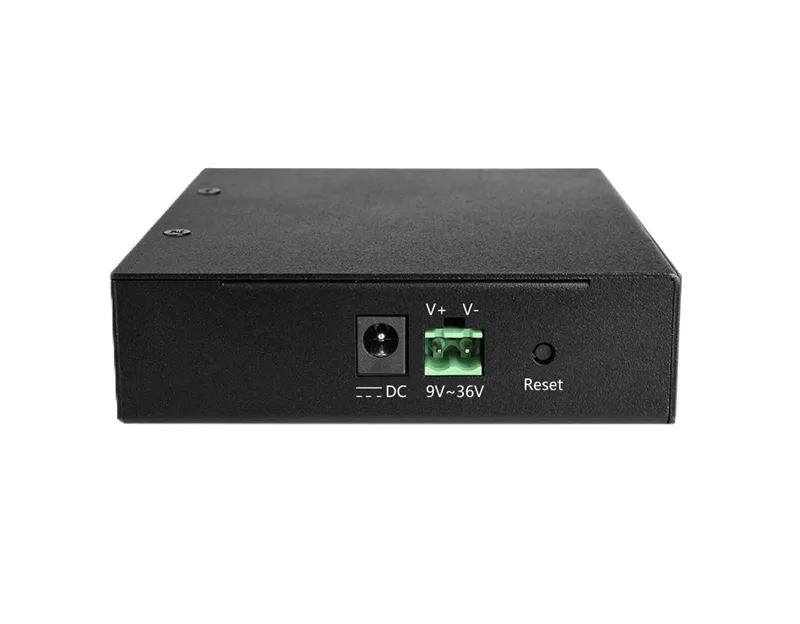

| Power Requirements | Power supply | Nominal 24V, tolerance 9 ~ 36VDC |
| Isolation | Anti-reverse protection | |
| Power consumption | < 3 W | |
| Connector | 2 pin connector with 5mm pitch + round hole, dual redundancy | |
| Mechanical Characteristics | Dimensions | H x W x D: 122 mm x 27 mm x 100 mm |
| Weight | 350g | |
| Operating Environment | Operating temperature | -40 ~ +70℃ |
| Storage temperature | -40 ~ +85℃ | |
| Operating humidity | 5 ~ 95% RH (no condensation) |
Order Information
| Model | Ethernet Interface | CAN Interface |
| CAN-ETH-200 | 1 x 10/100M | 2 x CAN |
Documentation
CAN-ETH Datasheet
CAN-ETH CAN to Ethernet Converter
Tools and Software
easy-CAN Debugger
Free tool software is used to debug and test the CAN bus to UDP protocol.
