Making Communication as Simple as Building Blocks.
Making Communication as Simple as Building Blocks.
2, 3, 4x Ethernet interfaces
4, 8, 16x synchronous HDLC serial ports, supports asynchronous UART
Synchronous/Asynchronous serial port to Ethernet interface conversion
HDLC to UDP protocol conversion
1U, 19-inch standard rack-mountable chassis
Supports dual redundant power supplies
Low-power, fanless design
Overview
Introduction

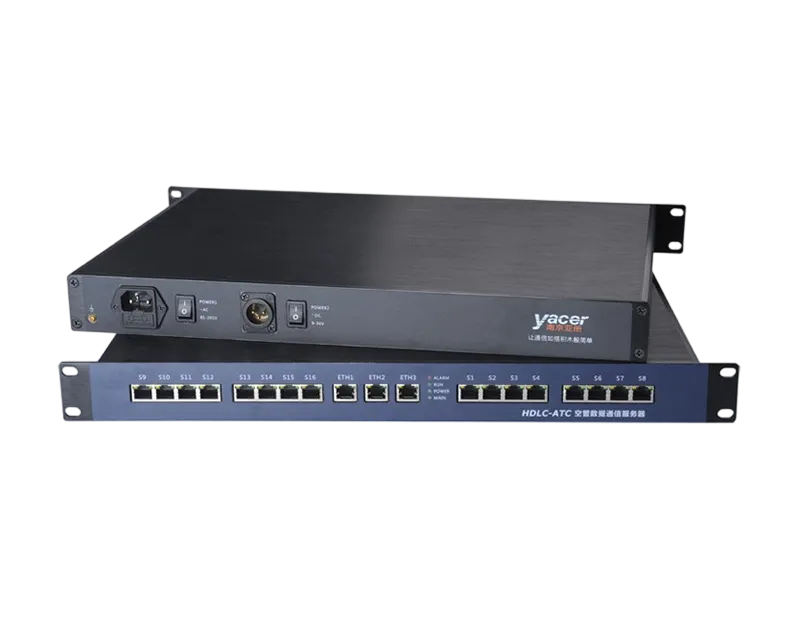

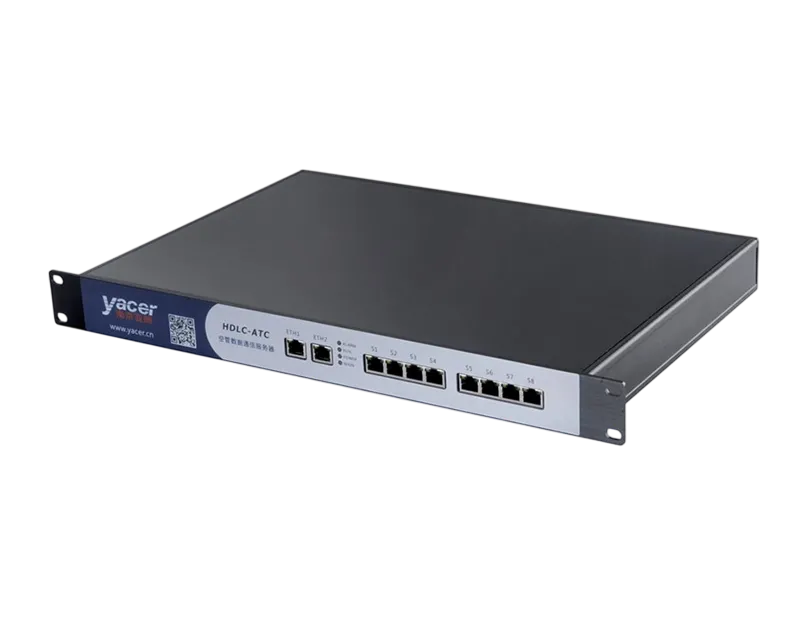

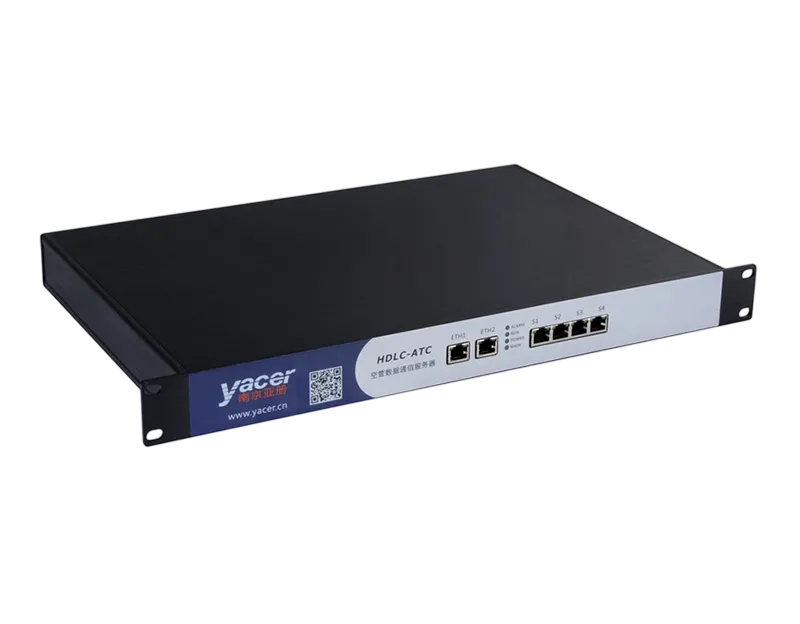

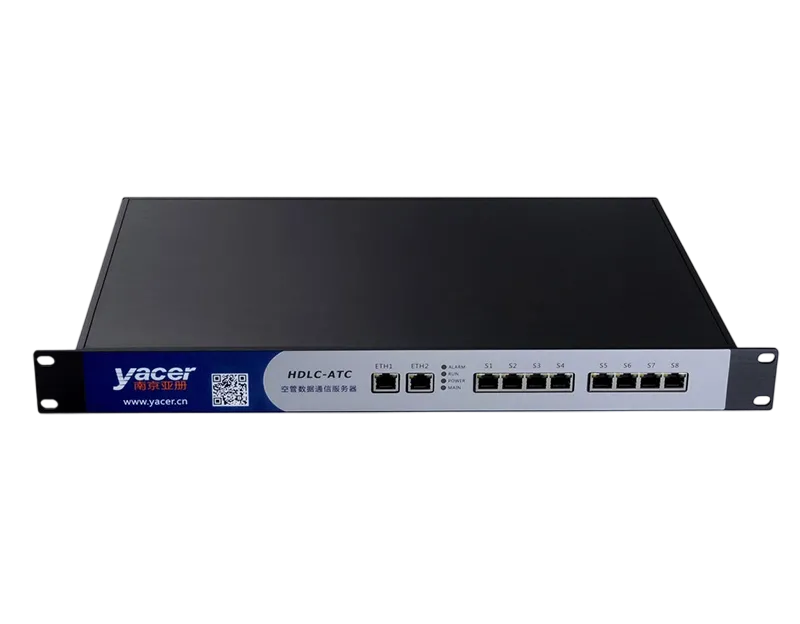

Yacer HDLC-ATC Air Traffic Control Data Communication Server is a high-performance protocol conversion device designed specifically for the air traffic control (ATC) field. It provides 2/3/4 Ethernet ports and 4/8/16 synchronous HDLC serial ports, supporting bidirectional interface conversion between serial ports and Ethernet, as well as protocol conversion between HDLC and UDP.
The device reliably receives and transmits ATC surveillance data, supporting two typical application scenarios: first, it is used for multi-channel radar signal access in ATC automation systems and surveillance systems; second, it provides synchronous serial port output support for surveillance data from equipment such as Primary Surveillance Radar (PSR), Secondary Surveillance Radar (SSR), and ADS-B receivers.

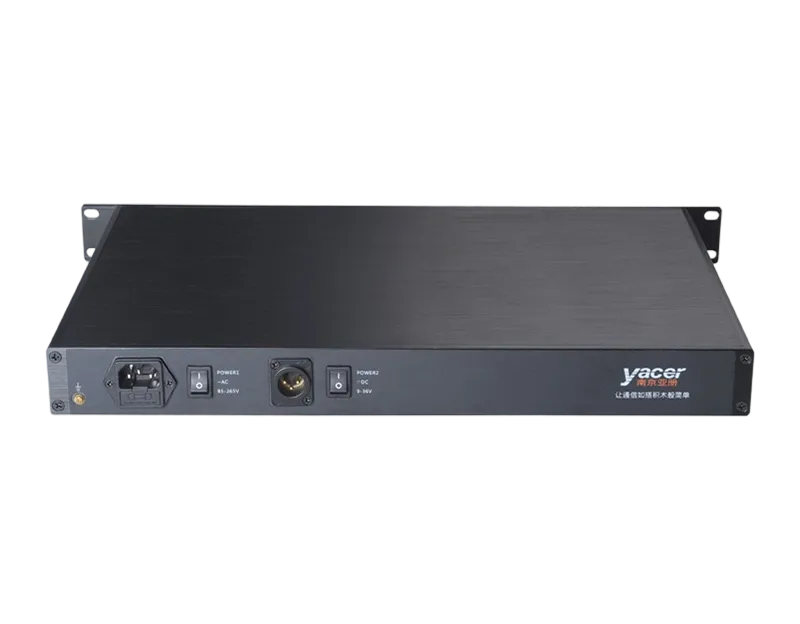

Housed in a 1U, 19-inch standard rack-mountable chassis, the product features a low-power, fanless design, ensuring high reliability and silent operation. The dual redundant power supplies further enhance system stability, fully meeting the high demands of ATC scenario for long-term, continuous equipment operation.
Applications
Air Traffic Control (ATC)
Serial-to-Ethernet Conversion & HDLC-to-UDP Conversion
Synchronous serial output of target reports from PSR, SSR, ADS-B and other devices
Radar signal access for ATC automation systems and surveillance systems
Recording and playback of ATC radar data
Bridging and remote transmission of ATC surveillance data
Specifications
| Item | Parameters | Details |
| Serial Port | Quantity | 4, 8, 16 x RJ-45 |
| Working mode | Synchronous HDLC, Asynchronous UART | |
| Interface type | RS-232 full-duplex | |
| Encoding format | NRZ | |
| Baud rate | ≤ 250 kbps | |
| Synchronous clock | General, Master, Slave( external clock ) | |
| ESD protection | ± 15 KV | |
| Ethernet Interface | Quantity | 2, 3, 4 x RJ-45 |
| Protocol | TCP/IP | |
| Programming interface | UDP Server, UDP Client | |
| Configuration Management | Configuration tool | yacer-DMS configuration management software |
| Console interface | Ethernet Interface | |
| Power Requirements | Power redundancy | Dual AC redundancy (AC1 priority) |
| AC power supply | 85 ~ 265VAC | |
| DC power supply | 9 ~ 36VDC | |
| Power consumption | < 10 W | |
| Mechanical Characteristics | Dimensions | 1U, standard 19-inch rack mounted, fanless design |
| Weight | 3.0 Kg | |
| Operating Environment | Operating temperature | -10 ~ +60℃ |
| Storage temperature | -30 ~ +75℃ | |
| Operating humidity | 30 ~ 90% RH (no condensation) | |
| Storage humidity | 10 ~ 90% RH (no condensation) |
Order Information
| Product Model | Serial Port | Ethernet Interface | Power Redundancy |
| HDLC-ATC-400 | 4 x RS-232 sync serial ports, 2 with async support | 2 x 100M | Dual AC |
| HDLC-ATC-800 | 8 x RS-232 sync serial ports, 2 with async support | 2 x 100M | Dual AC |
| HDLC-ATC-1600 | 16 x RS-232 sync serial ports, 2 with async support | 3 x 100M | Dual AC |
| HDLC-ATC-800Q | 8 x RS-232 sync serial ports, 2 with async support | 4 x 100M | Dual AC |
| HDLC-ATC-1600Q | 16 x RS-232 sync/async serial ports | 4 x 1000M | Dual AC |
Documentation
HDLC-ATC Datesheet
HDLC-ATC Surveillance Data Communication Server Datesheet
