1-to-4/8 fan-out for synch HDLC or async UART signals
Supports RS-232, RS-422
Baud rate adaptive, up to 250 kbps
Optional 1U, 19-inch rack-mountable chassis or compact chassis
High reliability, supports dual power supply redundancy
Low power consumption, fanless design
Overview
Introduction
Yacer HDLC-RSD is a high-performance active data distribution device specifically designed for air traffic control radar data distribution.It supports baud rates up to 250 kbps and enables 1-to-4 and 1-to-8 data broadcast sharing and output for HDLC synchronous serial interfaces.
The device can serve as an ATC surveillance data splitter, supporting multi-channel sharing and distribution of data output from equipment such as Primary Surveillance Radar (PSR), Secondary Surveillance Radar (SSR), and ADS-B.
The product is available in two form factors: a 1U 19-inch standard rack-mountable chassis and a compact enclosure. It features a low-power, fanless design for high reliability and supports redundant power supplies to meet the ATC industry's requirements for stable communication.
Applications
Air Traffic Control (ATC)
Distribution and sharing of output signals from PSR, SSR, ADS-B and other equipment
Radar signal access for ATC automation systems or surveillance systems
Synchronous/asynchronous serial port splitter
Serial data sharing device
Specifications
| Item | Parameters | Details |
| Main Channel (input) | Quantity | 2 x RJ-45 |
| Working mode | Synchronous HDLC, Asynchronous UART | |
| Interface type | RS-232 + RS-422 | |
| Baud rate | ≤ 250 kbps | |
| ESD protection | ± 15 kV | |
| Sub Channel (output) | Quantity | 4 / 8 x RJ-45 |
| Working mode | Synchronous HDLC, Asynchronous UART | |
| Interface type | RS-232 | |
| Baud rate | ≤ 250 Kbps | |
| ESD protection | ± 15 kV | |
| Power Requirements | Power redundancy | Dual AC redundancy (AC1 priority) AC + DC redundancy (AC priority) |
| AC power supply | 85 ~ 265VAC | |
| DC power supply | 9 ~ 36VDC | |
| Power consumption | < 5 W | |
| Mechanical Characteristics | Dimensions | HDLC-RSD-800: 1U, standard 19-inch rack mounted HDLC-RSD-400: H x W x D: 32 x 193.55 x 124 mm |
| Weight | HDLC-RSD-800: 3.0 Kg HDLC-RSD-400: 450g | |
| Operating Environment | Operating temperature | -10 ~ +60℃ |
| Storage temperature | -30 ~ +75℃ | |
| Operating humidity | 30 ~ 90% RH (no condensation) | |
| Storage humidity | 10 ~ 90% RH (no condensation) |
Order Information
| Product Model | Main Channel | Sub Channel | Chassis | Power |

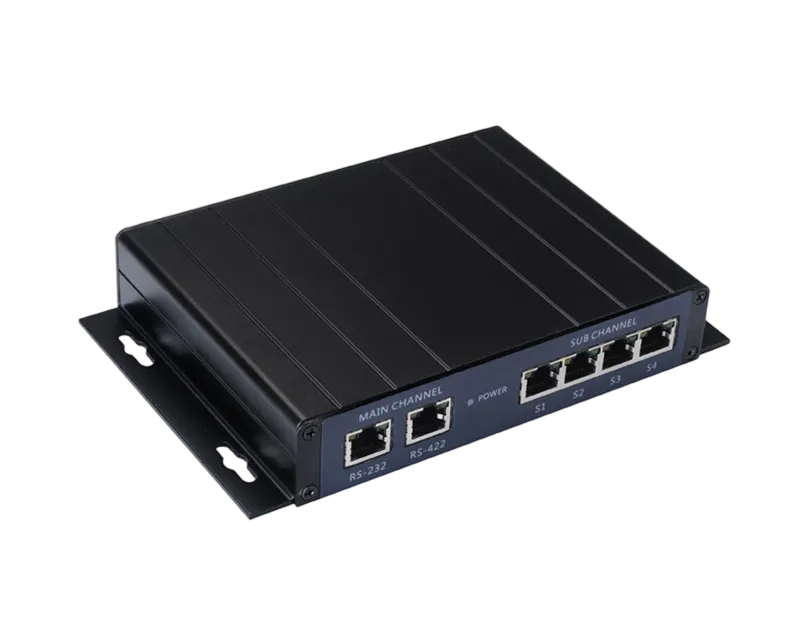

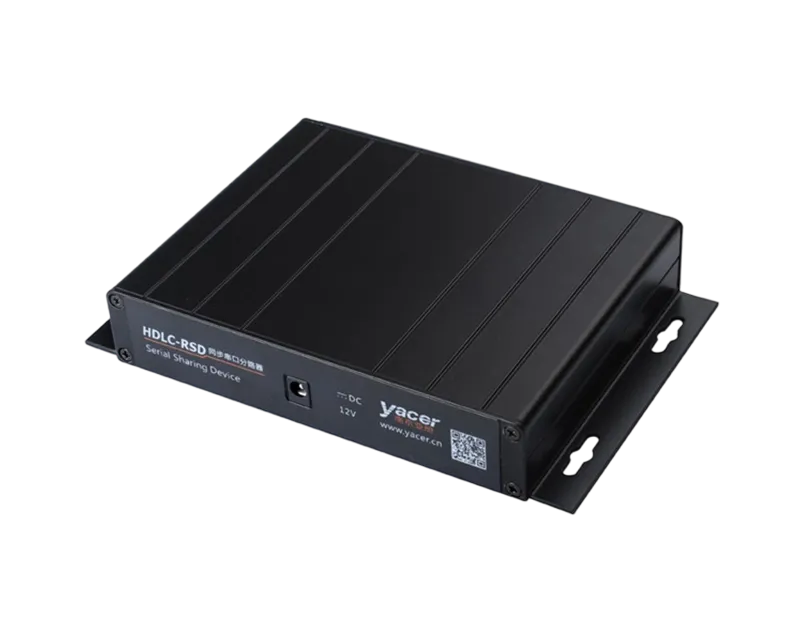

| HDLC-RSD-400 | RS-232 + RS-422 | 4 x RS-232 | Compact | DC 12V |

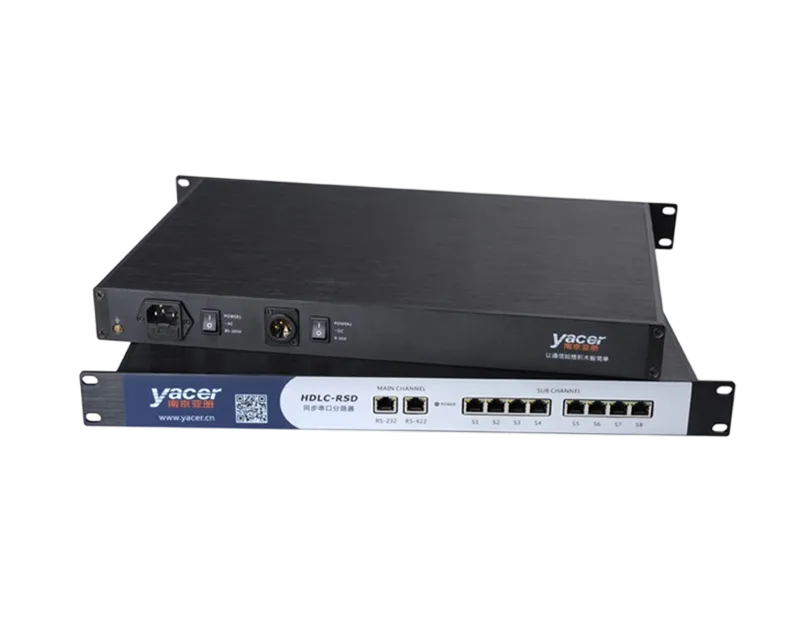

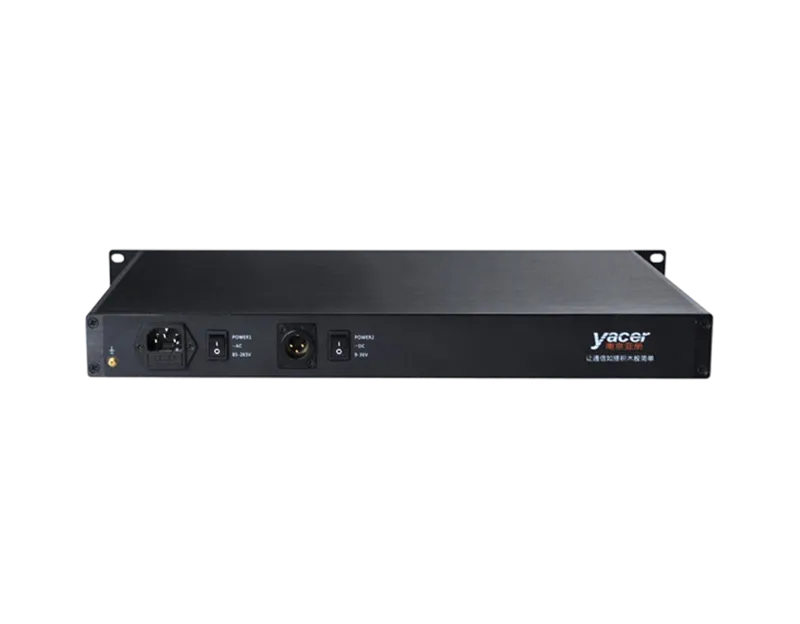

| HDLC-RSD-800 | RS-232 + RS-422 | 8 x RS-232 | 1U, 19-inch | Dual AC Redundancy |
Documentation
HDLC-RSD Datesheet
HDLC-RSD ATC Surveillance Data Distributor Datasheet
Tools and Software
yacer-DMS Configuration Management Software
Yacer HDLC, MVB, TRDP, SDLC communication products configuration management software.
easy-UART Debugger
Serial to UDP protocol debugging tool software.
easy-HDLC Debugger
Free tool software for debugging synchronous HDLC protocol to UDP.
