2x Isolated RS-485/422 synchronous/asynchronous serial port
1x TTL/CMOS synchronous/asynchronous serial port
All serial ports support synchronous HDLC and asynchronous UART working mode
NRZI, DBPL, Manchester and differential Manchester encoding formats
Open and flexible configuration management
+5V power supply, low power consumption
Small size, Industrial wide temperature
Overview
Introduction

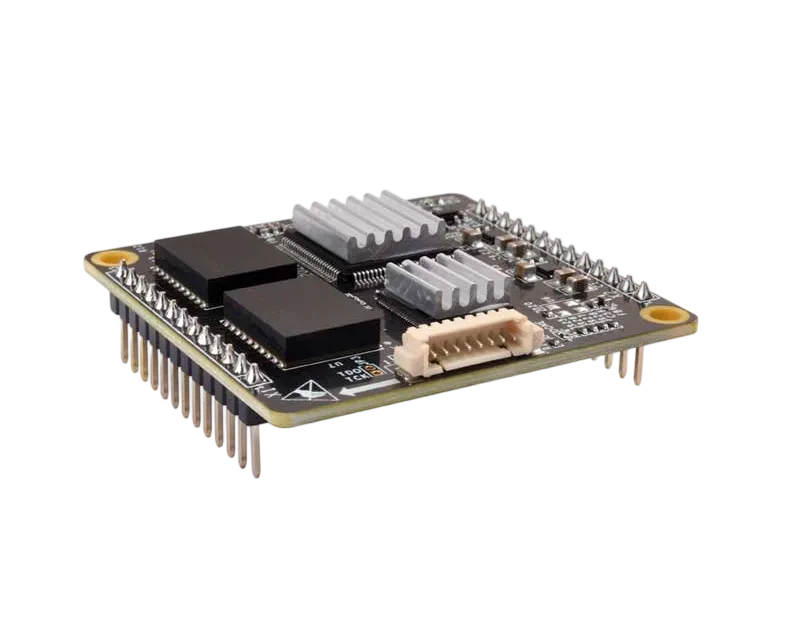

The Yacer HDLC-UART Isolated Synchronous Serial Module, provides two isolated RS-485/422 Synchronous Serial Port and one UART Extended Interface for protocol conversion between HDLC and UART.

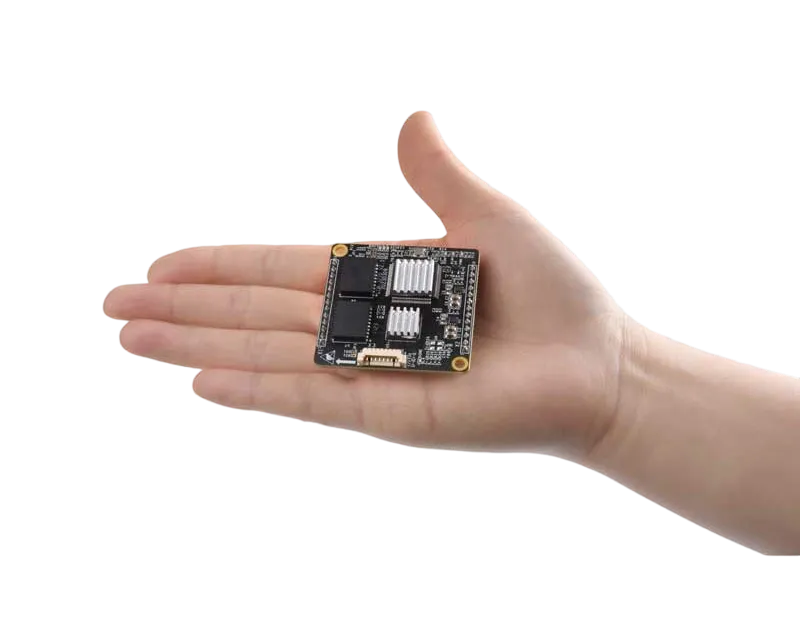

46.5 x 48mm micro size, 2.54 mm pitch male expansion connector. +5V power supply, low power consumption. Industrial wide temperature, suitable for embedded applications.
Applications
Protocol conversion between synchronous and asynchronous serial port
Protocol conversion between HDLC and UART
Train Control and Management System (TCMS)
Train Communication Network (TCN)
Embedded development and application
Specifications
| Item | Parameters | Details |
| Isolated Synchronous and Asynchronous Serial S1, S2 | Interface type | Isolate RS-485/422 |
| Working mode | Synchronous HDLC, Asynchronous UART | |
| Encoding format | NRZI, Manchester, Differential Manchester,DBPL(Differential Bi-Phase Level) | |
| Baud rate | ≤ 1 Mbps | |
| Isolation | 2.5 kVrms | |
| CMOS Synchronous and Asynchronous Serial S3 | Level standard | 3.3V LVCMOS |
| Duplex type | full-duplex, half-duplex | |
| Working mode | synchronous HDLC, asynchronous UART | |
| Baud rate | ≤ 1 Mbps | |
| Configuration Management | Configuration interface | Special DMS-UART interface (by DMS-UART-8P cable) |
| Configuration tool | yacer-DMS configuration management software | |
| Power Requirements | Power Supply | +5 VDC |
| Power consumption | < 2W | |

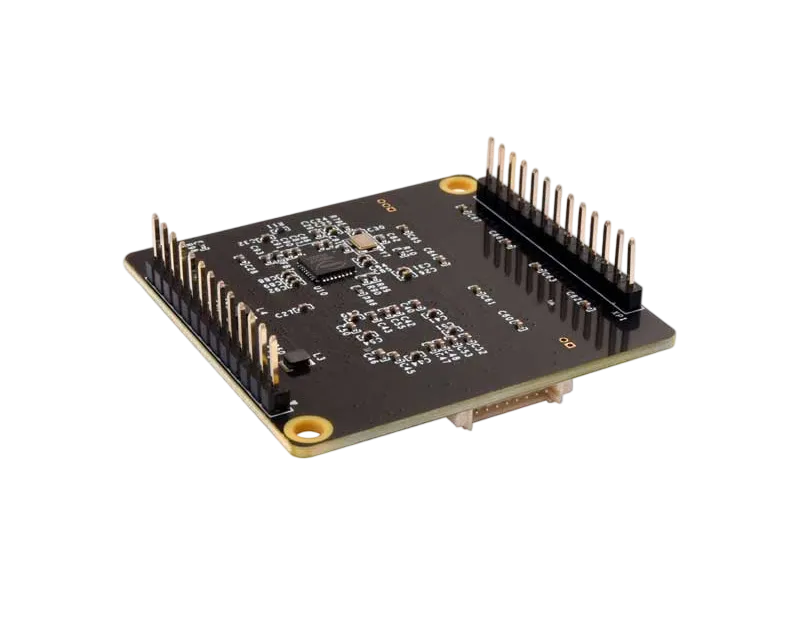

| Mechanical Characteristics | Connector | Two 2.54mm pitch 13-pin single-row male connectors |
| Dimensions | 46.5 x 48 mm | |
| Weight | 15 g | |
| Operating Environment | Operating temperature | -40 ~ +85℃ |
| Storage temperature | -40 ~ +85℃ | |
| Operating humidity | 5 ~ 95% RH (no condensation) |
Order Information
| Model | Description |
| HDLC-UART-200 | 2 x Isolated RS-485/422 + 1 x CMOS extended serial port |
Documentation
HDLC-UART Datasheet
HDLC-UART Isolated Synchronous Serial Module Datasheet
3D-Models-LCM3270
Tools and Software
DMS-UART
Yacer DMS-UART-8P configuration cable driver.
easy-UART Debugger
Serial to UDP protocol debugging tool software.
easy-HDLC Debugger
Free tool software for debugging synchronous HDLC protocol to UDP.
