1x 100M Ethernet PHY interface
2x isolated RS-485/422 sync/async serial ports
1x 3.3V CMOS/TTL sync/async serial port
All serial ports support HDLC protocol and async UART
Serial-to-Ethernet, HDLC-to-UDP protocol conversion
Synchronous HDLC to asynchronous UART conversion
Compact size of 46.5 x 48mm, +5V power supply
Overview
Introduction

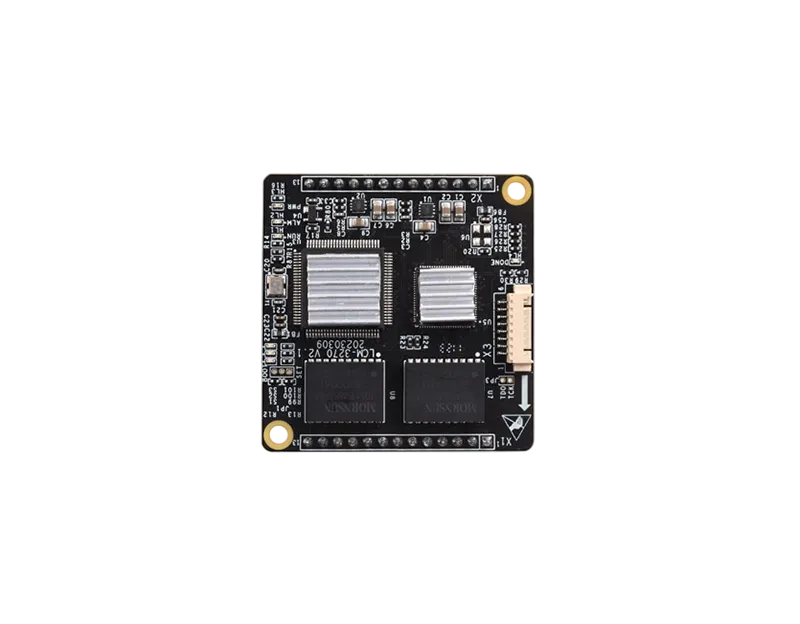

Yacer HDLC-UDP Embedded Synchronous Communication Module provides 1 x 100M Ethernet PHY interface, 2 x isolated RS-485/422 sync/async serial ports, and 1 x CMOS/TTL sync/async serial port. It supports NRZI, DBPL, Manchester, and Differential Manchester encoding formats, enabling protocol conversion between HDLC and UDP or UART.
With a compact size of 46.5 x 48mm and 2.54mm pin header interface, it operates on +5V power supply with low power consumption. Designed for industrial-grade wide temperature range, it is ideal for embedded applications.
Applications
HDLC and UDP Protocol Conversion
HDLC and UART Format Conversion
Synchronous and Asynchronous Serial Port Interconversion
Train Control and Management System (TCMS)
Train Communication Network (TCN)
Embedded Applications and Development
Specifications
| Item | Parameters | Details |
| Isolated Sync/Async Serial S1, S2 | Interface type | RS-485/422 with isolated serial port |
| Working mode | Synchronous HDLC, Asynchronous UART | |
| Encoding format | NRZI, DBPL(Differential Bi-Phase Level),Manchester, Differential Manchester, | |
| Baud rate | ≤ 1 Mbps | |
| Isolation | 2.5 kVrms | |
| CMOS Sync/Async Serial S3 | Level standard | 3.3V LVCMOS |
| Duplex type | Full-duplex, Half-duplex | |
| Working mode | Synchronous HDLC, Asynchronous UART | |
| Baud rate | ≤ 1 Mbps | |
| Ethernet Intrface | Number | 2 x 100M PHY |
| Rate | 100 Mbps, supporting MDI/MDIX adaptive | |
| Protocol | TCP/IP | |
| Programming Interface | UDP Server, UDP Client, support unicast / multicast / broadcast | |
| Configuration Management | Configuration interface | Special DMS-UART interface (by DMS-UART-8P cable)Ethernet interface |
| Configuration tool | yacer-DMS configuration management software | |
| Power Requirements | Power Supply | +5 VDC |
| Power consumption | < 2W | |
| Mechanical Characteristics | Connector | Two 13-pin single-row pin header connectors with 2.54mm pitc |
| Dimensions | 46.5 x 48 mm | |
| Weight | 15 g | |
| Operating Environment | Operating temperature | -40 ~ +85℃ |
| Storage temperature | -40 ~ +85℃ | |
| Operating humidity | 5 ~ 95% RH (no condensation) |
Order Information
| Module | Description |
| HDLC-UDP-200 | 2 x Isolated RS-485/422 sync/async serial ports + 1 x Ethernet PHY + 1 x CMOS/TTL sync/async serial port |
