1x 100M Ethernet interface
2x RS-232/422/485 multi-protocol serial ports, supporting HDLC protocol
Supports NRZ, NRZI, DBPL, Manchester encoding
Serial-to-Ethernet interface conversion, HDLC-to-UDP protocol conversion
Synchronous-to-asynchronous serial port conversion
Supports USB power supply
Overview
Introduction

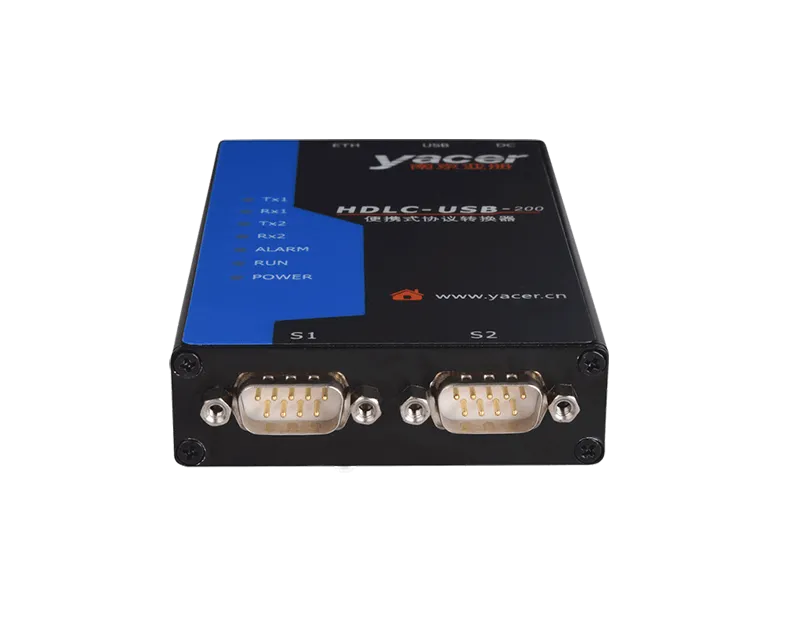

Yacer HDLC-USB Synchronous Protocol Converter provides 2 channels of RS-232/422/485 multi-protocol sync/async serial ports and 1 Ethernet port. It supports conversion between synchronous and asynchronous serial ports, enabling protocol conversion between serial ports and Ethernet ports.
The product features an ultra-compact, lightweight, and slim design with USB power supply, making it suitable for portable and embedded applications.
Applications
Serial-to-Ethernet conversion, HDLC-to-UDP conversion
Synchronous serial port to asynchronous serial port conversion
Air Traffic Control (ATC)
Train Control and Management System (TCMS)
Train Communication Network (TCN)
Telemetry and measurement & control data transmission
Satellite and radio data transmission
Aerospace and aviation data communications
Portable application
Debugging and Testing Applications
Specifications
| Item | Parameters | Details |
| Serial Port | Quantity | 2 x D-sub 9 (Male) |
| Working mode | Synchronous HDLC, Asynchronous UART | |
| Interface type | RS-232 Full-duplex RS-422 Full-duplex RS-485 Half-duplex | |
| HDLC Encoding format | NRZ, NRZI, DBPL(Differential Bi-Phase Level), Manchester, Differential Manchester | |
| HDLC frame length | ≤ 1470 bytes | |
| Synchronous clock | Normal, slave and master clock mode | |
| Baud rate | 500 kbps | |
| ESD protection | ± 15 kV | |
| Ethernet Interface | Quantity | 1 x RJ45 |
| Rate | 100 Mbps, supporting MDI/MDIX adaptive | |
| Protocol | TCP/IP | |
| Programming interface | UDP Server, UDP Client, Unicast/Multicast/Broadcast | |
| Configuration Management | Configuration interface | Ethernet interface |
| Configuration tool | yacer-DMS configuration management software | |
| USB Interface | Interface | 1 x type-B USB interface (female), only for the power supply |
| Power Requirements | Input voltage | +5V DC |
| Power consumption | < 2W | |
| Power interface | USB interface DC 5.5 x 2.1mm interface | |
| Mechanical Characteristics | Dimensions | H x W x D: 21.5 mm x 73 mm x 123 mm |
| Weight | 200g | |
| Enclosure | Portable aluminum alloy fully-enclosed enclosure | |
| Operating Environment | Operating temperature | -40 ~ +70℃ |
| Storage temperature | -40 ~ +85℃ | |
| Operating humidity | 5 ~ 95% RH (no condensation) |
Order Information
| Model | Serial Port | Ethernet Interface |
| HDLC-USB-200 | 2 x RS-232/422/485 synchronous & asynchronous serial ports | 1 x 100M |
Documentation
HDLC-USB Datasheet
HDLC-USB Portable Synchronous Protocol Converter Datasheet
Tools and Software
yacer-DMS Configuration Management Software
Yacer HDLC, MVB, TRDP, SDLC communication products configuration management software.
easy-UART Debugger
Serial to UDP protocol debugging tool software.
easy-HDLC Debugger
Free tool software for debugging synchronous HDLC protocol to UDP.
