Making Communication as Simple as Building Blocks.
Making Communication as Simple as Building Blocks.
1x MVB bus EMD interface
1x 100M Ethernet port for MVB to TCP/IP protocol conversion
1x Serial port for MVB to RS-232/422/485 conversion
1x CAN interface for MVB to CAN bus conversion
Comprehensive isolation protection
Optional Power Supply: 24/36/48/72/96/110V DC
Overview
Introduction

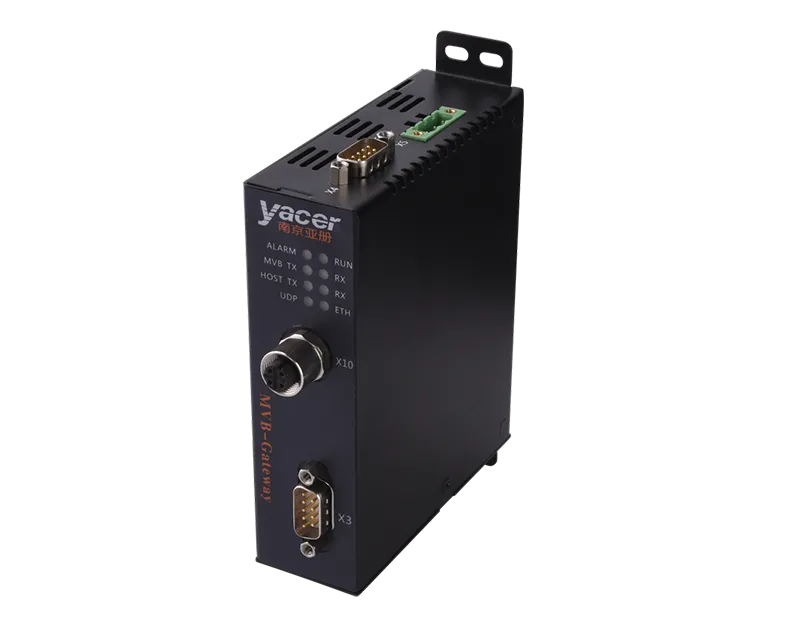

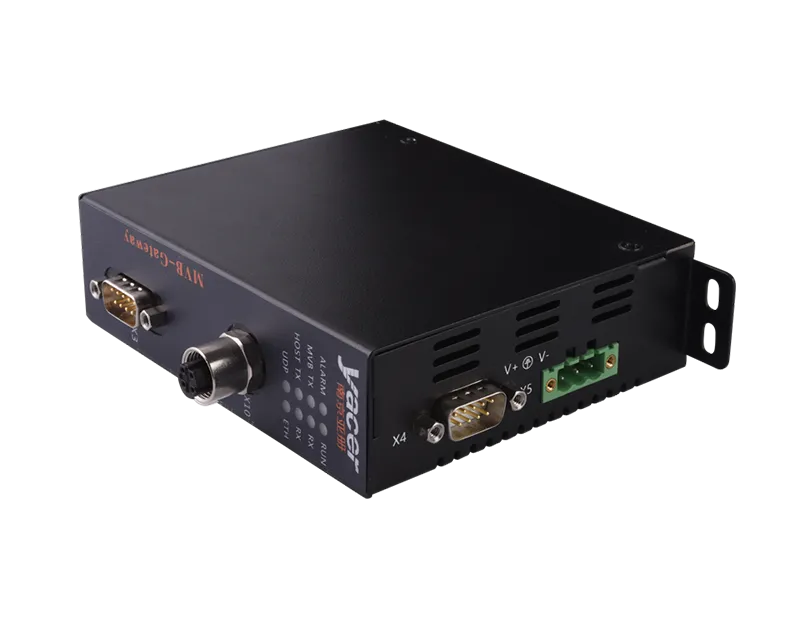

Yacer MVB-Gateway Multifunctional Vehicle Communication Gateway integrates MVB bus interfaces, Ethernet interfaces, serial ports, and CAN ports. It supports protocol conversion between MVB and Ethernet, serial communication, as well as CAN bus, and provides real-time acquisition of MVB process data (PD).
The product features an industrial-grade wide-temperature design, comprehensive electrical isolation, and robust anti-interference protection mechanisms. Its compact structure makes it suitable for various application scenarios in train communication networks, meeting the stringent requirements for high reliability and stability in the complex environment of rail transit.
Applications
Protocol conversion between MVB protocol and Ethernet
Interface conversion between MVB interface and serial port
Conversion between MVB bus and CAN bus
Train Control and Management System (TCMS)
Train Communication Network (TCN)
Multifunction Vehicle Bus (MVB) communication
Specifications
| Item | Parameters | Details |
| MVB Interface | Connector | 1 x male D-Sub 9 (X20) + 1 x female D-Sub 9 (X21) |
| Media type | EMD | |
| Device class | Class 1 | |
| Device capabilities | Device_Status, Process_Data(PD) | |
| Number of PD ports | 32 | |
| Isolation | 2.5 kVrms | |
| Serial Port | Connector | 1 x male D-Sub 9 (X3) |
| Optional type | l RS-232 full-duplex serial port l RS-422 full-duplex isolated serial port l RS-485 half-duplex isolated serial port | |
| Baud rate | ≤ 921.6 kbps | |
| Isolation | 2.5 kVrms | |
| CAN Interface | Connector | 1 x male D-Sub 9 (X4) |
| Interface type | CAN bus isolation interface (CAN 2.0A, CAN 2.0B, ISO 11898) | |
| Baud rate | 50 Kbps ~ 1 Mbps | |
| Isolation | 2.5 kVrms | |
| Ethernet Interface | Connector | 1 x M12 with D-coding |
| Rate | 100 Mbps | |
| Network protocol | TCP/IP | |
| Programming interface | UDP Server, UDP ClientSupport Unicast/Multicast/Broadcast | |
| Isolation | 1.5 kVrms | |
| Configuration Software | Configuration tool | yacer-DMS configuration management software |
| Configuration interface | Ethernet interface | |
| Power | Power supply | LV: Nominal 24V, tolerance 9 ~ 36VDC MV: Nominal 36V, 48V, tolerance 18 ~ 75VDC HV: Nominal 72V, 96V, 110V, tolerance 40 ~ 160VDC |
| Isolation protection | >1.5 kVrms, supporting Anti-reverse protection | |
| Power consumption | < 3W | |
| Power connector | 3 pin connector with 5mm pitch (Phoenix Contact MSTB 2,5 / 3-GF or equivalent) | |
| Mechanical Characteristics | Dimensions | H x W x D: 124 x 36 x 104 mm |
| Weight | 500g | |
| Operating Environment | Operating temperature | -40 ~ +70℃ |
| Storage temperature | -40 ~ +85℃ | |
| Operating humidity | 5 ~ 95% RH (no condensation) |
Order Information
| MVB-Gateway | - | M | 3 | 6 | U | -LV | |
| MVB Type: | |||||||
| • EMD | M | ||||||
| Serial Port: | |||||||
| • Full-duplex RS-232 serial port | 3 | ||||||
| • Full-duplex RS-422 serial port | 4 | ||||||
| • Half-duplex RS-485 serial port | 5 | ||||||
| CAN Bus Interface: | |||||||
| • CAN Bus interface | 6 | ||||||
| Ethernet Protocol: | |||||||
| • Ethernet support for UDP protocol | U | ||||||
| Power Supply: | |||||||
| • Nominal 24V, tolerance 9 ~ 36VDC | -LV | ||||||
| • Nominal 36V, 48V, tolerance 18 ~ 75VDC | -MV | ||||||
| • Nominal 72V, 96V, 110V, tolerance 40 ~ 160VDC | -HV | ||||||
| MVB Interface Connector Bolts: | |||||||
| • Metric M3 | <empty> | ||||||
| • Imperial UNC4-40 | -UNC | ||||||
