Making Communication as Simple as Building Blocks.
Making Communication as Simple as Building Blocks.
1x MVB Bus Interface, EMD/ESD media optional
2x 100M Ethernet interfaces for MVB-to-UDP conversion
Multiple serial ports for MVB-to-RS-232/422/485
MVB Slave mode, TRDP protocol optional
Up to 1024 PD source & sink ports
Optional Power Supply: 24/36/48/72/96/110V DC
Overview
Introduction

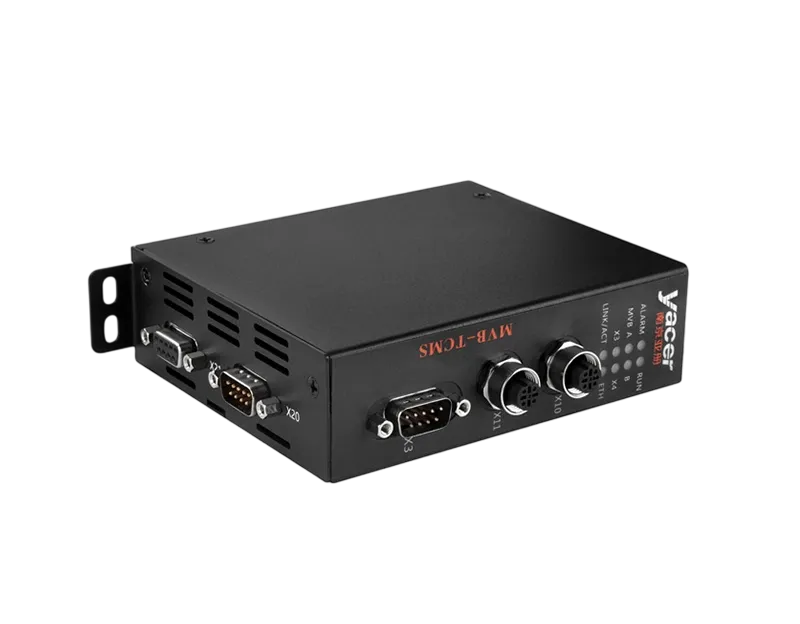

Yacer MVB-TCMS Train MVB Bus Converter integrates one MVB interface, two Ethernet interfaces, and supports expansion interfaces such as RS-232/422/485 and CAN. It enables protocol conversion between MVB, Ethernet, serial ports, and CAN bus, and optionally supports the TRDP protocol.
Designed with industrial-grade wide temperature tolerance and comprehensive isolation protection, the converter features a compact structure, making it ideal for train communication network applications.
Applications
Protocol conversion between MVB and Ethernet interface
Port conversion between MVB and serial port
Interface conversion between serial port and Ethernet interface
Protocol conversion between CAN and Ethernet interface
Protocol conversion between TRDP and UDP
Protocol conversion between TRDP and serial port
Train Control and Management System (TCMS)
Train Communication Network (TCN)
Specifications
| Item | Parameters | Details |

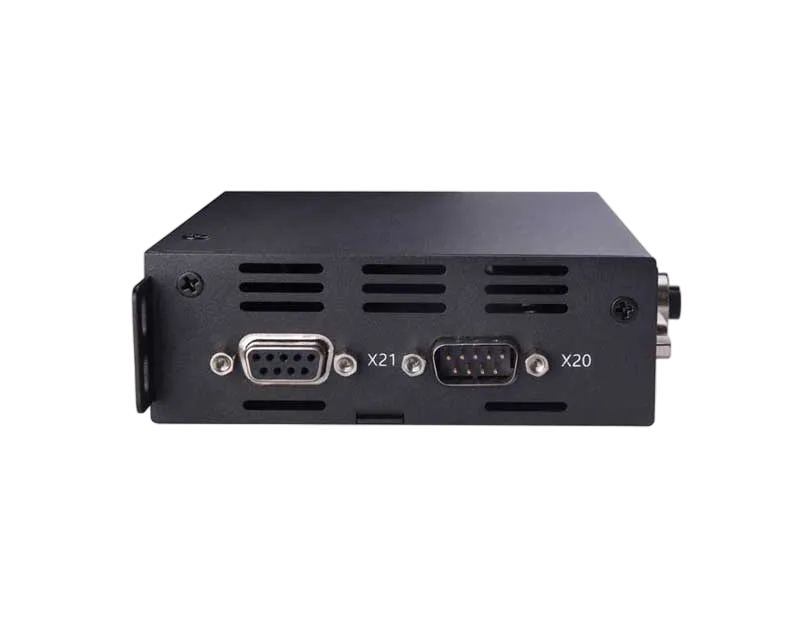

| MVB Interface S1 | Connector | 1x male D-Sub 9 (X20) + 1x female D-Sub 9 (X21) |
| Media type | Optional EMD, ESD+ | |
| Device class | Class 1 | |
| Device capabilities | Device_Status, Process_Data(PD) | |
| Number of PD ports | 1024 | |
| Isolation | 2.5 kVrms | |
| Extended Interface S3 | Connector | 1x male D-Sub 9 (X3) |
| Optional type | • RS-232 full-duplex serial port • RS-422 full-duplex isolated serial port • RS-485 half-duplex isolated serial port | |
| Baud rate | Asynchronous ≤ 1 Mbps | |
| Isolation | 2.5 kVrms | |

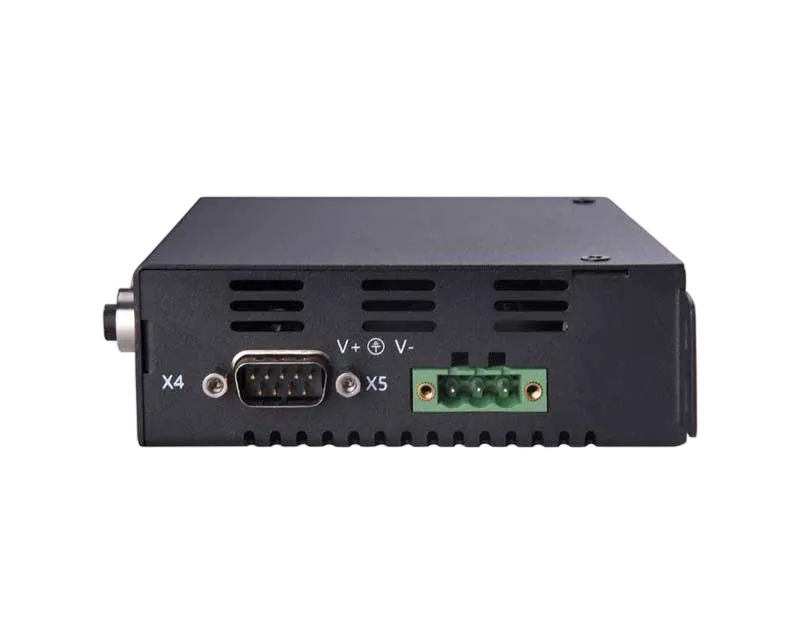

| Extended Interface S4 | Connector | 1x male D-Sub 9 (X4) |
| Optional type | • CAN bus isolation interface (CAN2.0A, CAN2.0B, ISO 11898) • RS-422 full-duplex isolated serial port • RS-485 half-duplex isolated serial port | |
| Baud rate | UART ≤ 1 Mbps CAN: 50 kbps ~ 1 Mbps | |
| Isolation | 2.5 kVrms | |
| Ethernet Interface | Connector | 2x M12 with D-coding |
| Function | Supporting Ethernet switching, dual-IP function | |
| Rate | 100 Mbps | |
| Protocol | TCP/IP, optional supporting TRDP | |
| Programming interface | UDP Server, UDP Client Supporting Unicast/Multicast/Broadcast | |
| Isolation | 1.5 kVrms | |
| Configuration Management | Configuration tool | yacer-DMS configuration management software |
| Configuration interface | Ethernet Interface, optional serial port | |
| Power Requirements | Power supply | LV: Nominal 24V, tolerance 9 ~ 36VDC MV: Nominal 36V, 48V, tolerance 18 ~ 75VDC HV: Nominal 72V, 96V, 110V, tolerance 40 ~ 160VDC |
| Isolation protection | >1.5 kV, Anti-reverse protection | |
| Power consumption | < 3 W | |
| Power connector | 3 pin connector with 5mm pitch (Phoenix Contact MSTB 2,5 / 3-GF or equivalent) | |
| Mechanical Characteristics | Dimensions | H x W x D: 124 mm x 36 mm x 104 mm |
| Weight | 500g | |
| Operating Environment | Operating temperature | -40 ~ +70℃ |
| Storage temperature | -40 ~ +85℃ | |
| Operating humidity | 5 ~ 95% RH (no condensation) |
Order Information
| MVB-TCMS | - | M | 3 | 5 | U | -LV | |
| MVB Type: | |||||||
| • EMD | M | ||||||
| • ESD+ | S | ||||||
| X3 extended interface: | |||||||
| • None | 0 | ||||||
| • Full-duplex RS-232 | 3 | ||||||
| • Full-duplex RS-422 | 4 | ||||||
| • Half-duplex RS-485 | 5 | ||||||
| X4 extended interface: | |||||||
| • None | 0 | ||||||
| • Full-duplex RS-422 | 4 | ||||||
| • Half-duplex RS-485 | 5 | ||||||
| • CAN bus interface | 6 | ||||||
| UDP/TRDP support: | |||||||
| • Ethernet supports UDP protocol | U | ||||||
| • Ethernet supports UDP, TRDP protocol | T | ||||||
| Supply voltage range: | |||||||
| • Nominal 24V, tolerance 9 ~ 36VDC | -LV | ||||||
| • Nominal 36V, 48V, tolerance 18 ~ 75VDC | -MV | ||||||
| • Nominal 72V, 96V, 110V, tolerance 40 ~ 160VDC | -HV | ||||||
| MVB D-Sub Bolts: | |||||||
| • M3 Bolts | <empty> | ||||||
| • UNC4-40 Bolts | -UNC | ||||||
Documentation
MVB-TCMS Datasheet
MVB-TCMS Train MVB Bus Converter Datasheet
3D-Models-TCMS
Tools and Software
yacer-DMS Configuration Management Software
Yacer HDLC, MVB, TRDP, SDLC communication products configuration management software.
easy-CAN Debugger
Free tool software is used to debug and test the CAN bus to UDP protocol.
MVB-Serial Debugger
Train MVB bus to serial port debugging tool software.
MVB-UDP Debugger
Train MVB protocol to Ethernet debugging tool software.
