1x Gigabit Ethernet Interface
4x RS-232/422/485 synchronous/asynchronous serial ports, baud rate up to 20 Mbps
Support synchronous HDLC, SDLC, asynchronous UART, Bitstream and other operating modes
NRZ, NRZI, DBPL, Manchester and differential Manchester encoding formats
On-board application CPU for users to program on-board for secondary development
4 ~17 VDC wide voltage power supply
Industrial wide temperature
Overview
Introduction

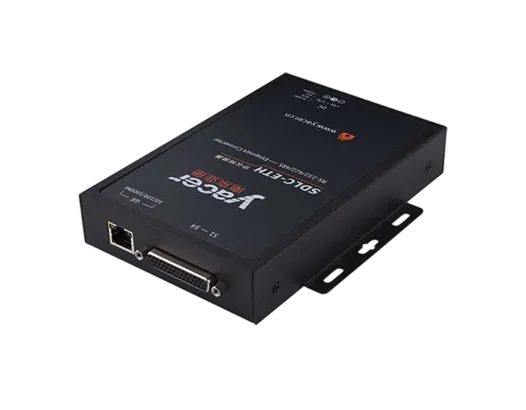

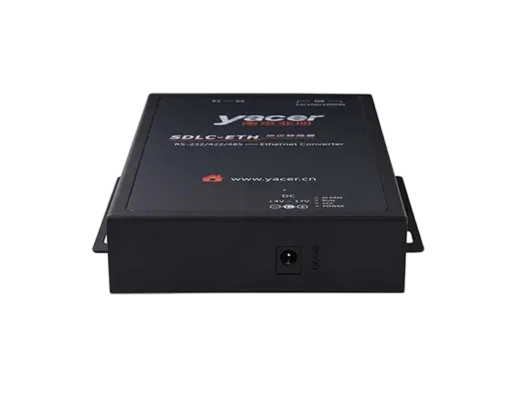

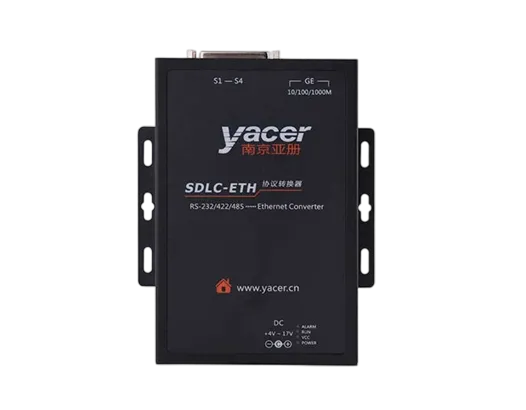

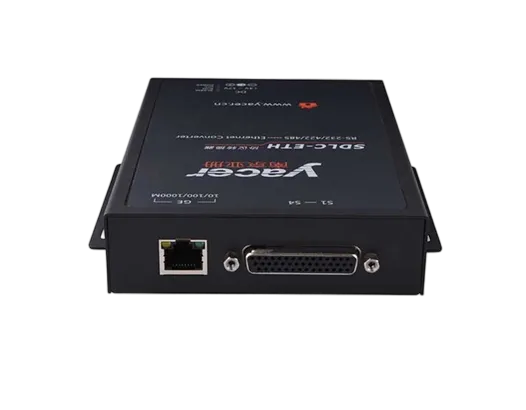

The Yacer SDLC-ETH High-Speed Synchronous Serial Converter, provides four high-speed RS-232/422/485 multi-protocol serial ports, supports synchronous HDLC/SDLC protocol and asynchronous UART mode. One Gigabit Ethernet port, realizes protocol conversion between serial and ethernet, supports serial Ethernet bridge function.
4~17 VDC wide voltage power supply, industrial wide temperature.
Applications
Protocol conversion between the serial port and Ethernet
Ethernet Bridging function between Ethernet interface and serial port
Conversion between synchronous and asynchronous serial ports
Multiplexer of serial ports
High-speed synchronous/asynchronous serial data communication and conversion
Telemetry, measurement and control data acquisition and transmission
Satellite, radio data transmission
Air Traffic Control (ATC), Air Traffic Management (ATM)
Specifications
| Serial Ports | |
| Quantity | 4 |
| Connector | 1 x D-Sub 44 (Female) |
| Working mode | Synchronous HDLC/SDLC, Asynchronous UARTSynchronous Bit stream |
| Interface type | RS-232, RS-422, RS-485 (Configurable by software) |
| Duplex mode | Full-duplex, Half-duplex (Configurable by software) |
| Encoding format | NRZ, NRZI, Manchester, Differential Manchester,DBPL(Differential Bi-Phase Level) |
| Baud rate | Synchronous: ≤ 20 MbpsAsynchronous: ≤ 3.5 Mbps |
| Synchronous clock | Normal, slave and master clock mode |
| ESD protection | ± 15 KV |
| Ethernet Interface | |
| Connector | 1 x RJ-45 |
| Speed | 10/100/1000 Mbps, Auto MDI/MDI-X |
| Network protocol | TCP/IP |
| Programming interface | UDP Server, UDP Client Unicast/Multicast/Broadcast |
| Ethernet bridge | Serial Ethernet bridge |
| Configuration Management | |
| Configuration tool | yacer-DMS configuration management software |
| Configuration interface | Ethernet Interface |
| Power Requirements | |
| Power Supply | 4 ~ 17 VDC |
| Power consumption | < 3 W |
| Power interface | DC Power Jack 5.5 x 2.1 mm (Male)Terminal 5.0 mm |
| Mechanical Characteristics | |
| Dimensions | H x W x D: 30 mm x 132 mm x 165 mm |
| Weight | 600g |
| Operating Environment | |
| Operating temperature | -40 ~ +70℃ |
| Storage temperature | -40 ~ +85℃ |
| Operating humidity | 5 ~ 95% RH (no condensation) |
Order Information
| Model | RS-232/422/485 Serial Ports | Ethernet Interface |
| SDLC-ETH-201 | 2 x Asynchronous2 x Synchronous/Asynchronous | 1 x 10/100/1000M |
| SDLC-ETH-401 | 4 x Synchronous/Asynchronous | 1 x 10/100/1000M |
