TRDP-CAN-UART Embedded Ethernet Converter Module

Cost-competitiveUltra-compactLong-term Supply

1x 100M Ethernet PHY interface with TRDP protocol support

1x UART interface for TRDP-to-serial conversion

1x CAN interface for TRDP-to-CAN bus conversion

Ultra-compact size of 30 x 35 mm with a 2.0mm pin header interface

Powered by +3.3V with ultra-low power consumption

Software & hardware reference designs + evaluation board

Inquire Now
TRDP-CAN-UART

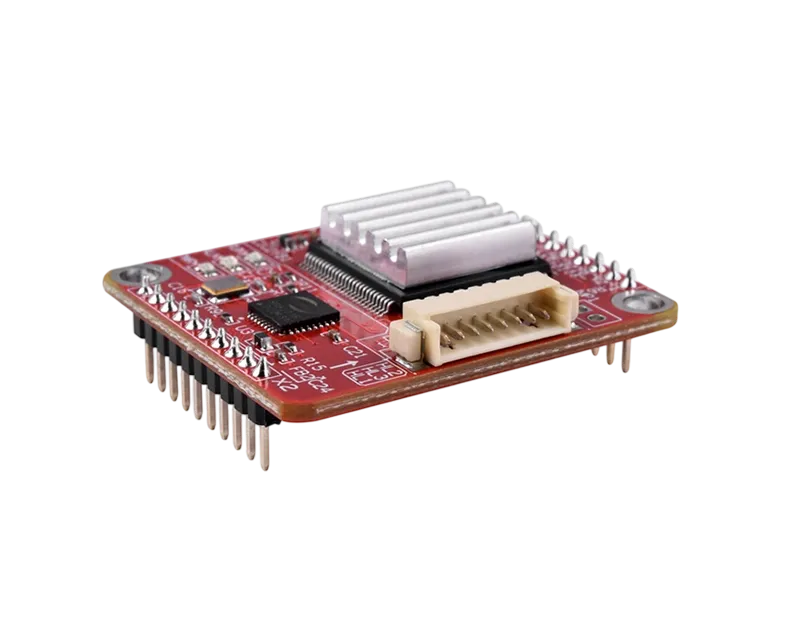

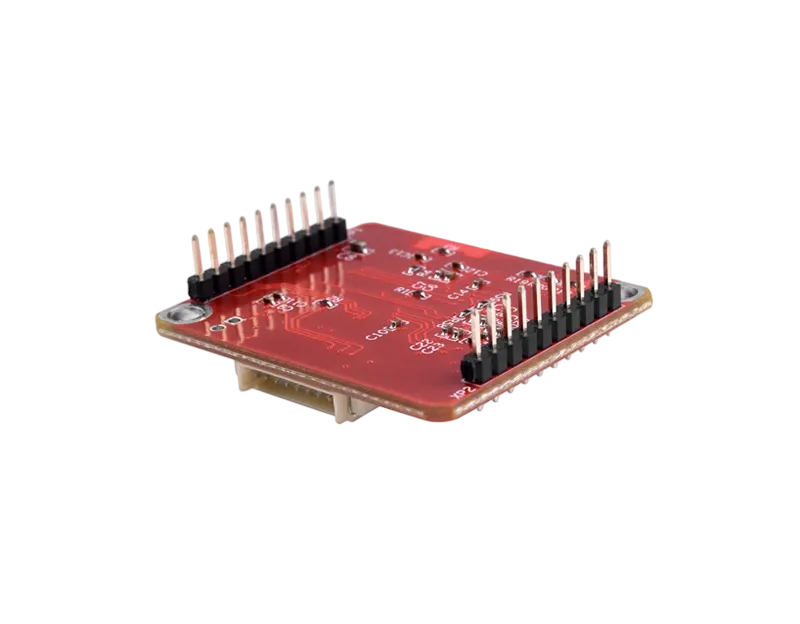

TRDP-CAN-UART 2.0mm pin header

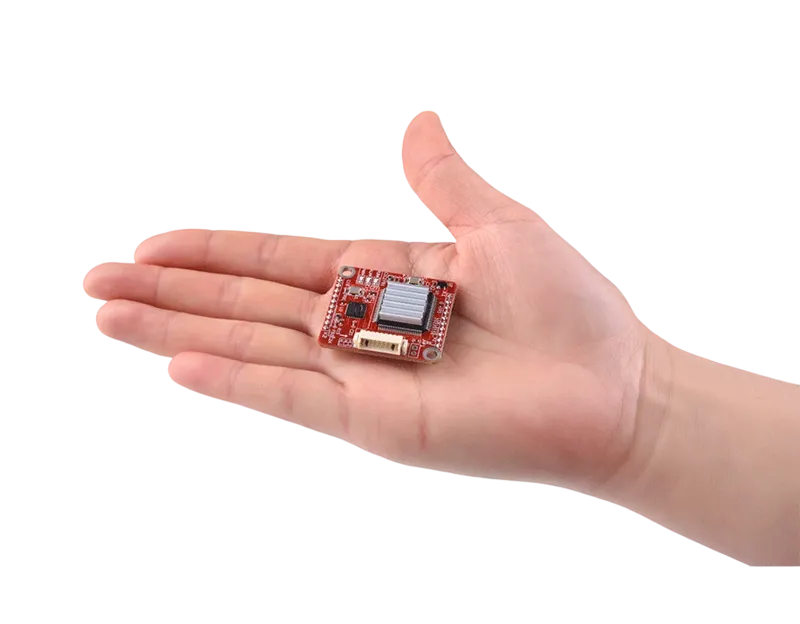

TRDP-CAN-UART compact size

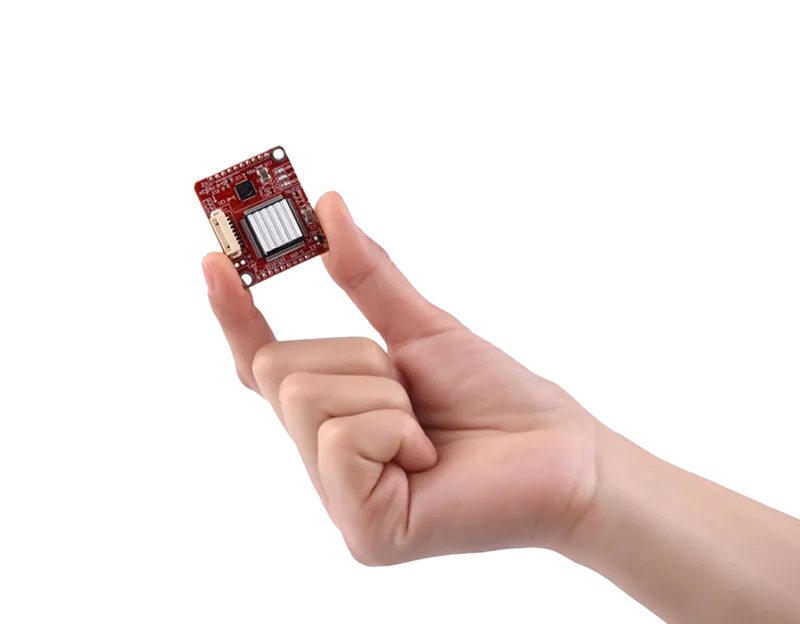

TRDP-CAN-UART Embedded
TRDP-CAN-UART
TRDP-CAN-UART 2.0mm pin header
TRDP-CAN-UART compact size
TRDP-CAN-UART Embedded

Overview

Introduction

The Yacer TRDP-CAN-UART Embedded Ethernet Converter Module provides 1x TRDP Ethernet PHY interface, 1x UART serial port and 1x CAN interface. It realizes protocol conversion between TRDP protocol and serial port, CAN bus.

30x35 mm micro size, 2.0mm pin interface. +3.3V power supply, low power consumption. Industrial wide temperature, suitable for embedded applications.

Applications

Protocol conversion between TRDP and UART

Bus conversion between TRDP and CAN bus interface

Train Control and Management System (TCMS)

Train Communication Network (TCN)

Embedded application and development

Specifications

ItemParametersDetails
Ethernet InterfaceNumber1x 100M PHY
Rate100 Mbps
ProtocolTRDP Protocol
UART InterfaceLevel standard1x 3.3V LVCMOS/TTL
Duplex typeFull-duplex, Half-duplex
Baud rate≤ 921.6 Kbps
CAN InterfaceLevel standard1x 3.3V LVCMOS/TTL
Working modeCAN 2.0A, CAN 2.0B, ISO 11898
Baud rate≤ 1 Mbps
Power RequirementsPower Supply+3.3 VDC
Power consumption< 1W
Mechanical CharacteristicsConnector2.0 mm pin connector
Dimensions30 mm x 35 mm
Weight< 15 g
Operating EnvironmentOperating temperature-40 ~ +85℃
Storage temperature-40 ~ +85℃
Operating humidity5 ~ 95% RH (no condensation)


Order Information

ModelEthernet InterfaceHost Interface
TRDP-CU-2201x 100M PHY1x UART + 1x CAN


Documentation

  • TRDP-CAN-UART Datasheet

    TRDP-CAN-UART Embedded Ethernet Converter Module Datasheet

    TRDP-CAN-UART Datasheet

  • 3D-Models-TRDP-CU

    3D-Models-TRDP-CU

Tools and Software

  • DMS-UART

    Yacer DMS-UART-8P configuration cable driver.

    DMS-UART

  • TRDP-Analyzer Debugger

    TRDP protocol process data ( PD ) sending and receiving test tool software.

    TRDP-Analyzer Debugger

  • TRDP-Serial Debugger

    Train Ethernet TRDP protocol to serial port debugging tool software.

    TRDP-Serial Debugger
