2x 100M Ethernet M12 ports for dual-redundant TRDP protocol
1x 100M Ethernet M12 port for UDP-to-TRDP protocol conversion
1x Serial port for RS-232/422/485 to TRDP conversion
1x CAN interface for CAN bus to TRDP protocol conversion
Complete tool suite: TRDP test/analysis software and debugging tools
Wide-range power input & plug-and-play operation
Overview
Introduction

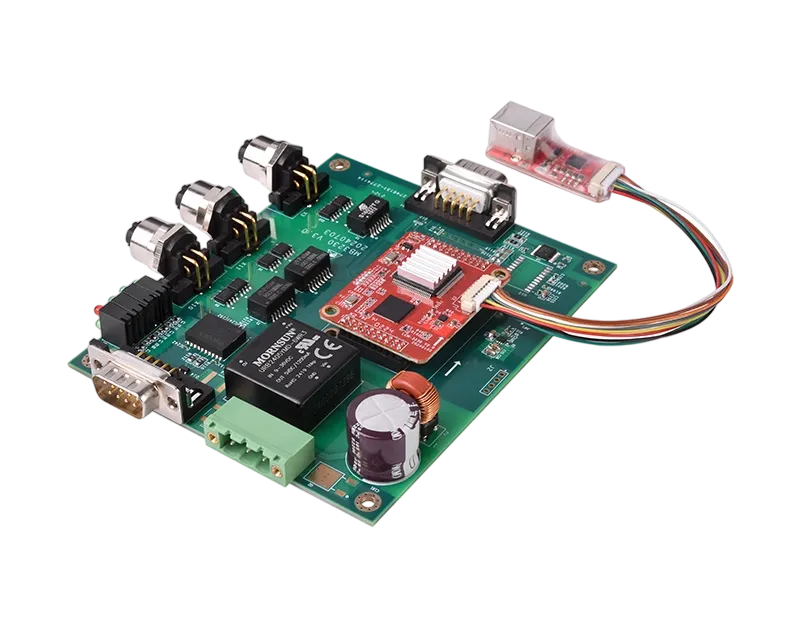

Yacer TRDP-ETH Dual-HomIng TRDP Network Card integrates 2x redundant TRDP Ethernet interfaces, 1x TCP/IP Ethernet interface, 1x serial port, and 1x CAN interface, supporting bidirectional protocol conversion between TRDP protocol and UDP, serial port, or CAN bus.
Applications
Protocol conversion between TRDP and Ethernet
Interface conversion between TRDP and serial port
Conversion between TRDP and CAN bus
Train Control and Management System (TCMS)
Train Communication Network (TCN)
Embedded development and application
Specifications
| Item | Parameters | Details |
| TRDP Ethernet Interface | Connector | 2x M12 with D-coding |
| Rate | 100 Mbps Full-duplex | |
| Network Protocol | TRDP | |
| Isolation | 1.5 kVrms | |
| TCP/IP Ethernet Interface | Connector | 1x M12 with D-coding |
| Rate | 100 Mbps | |
| Network Protocol | TCP/IP | |
| Isolation | 1.5 kVrms | |
| Serial Port | Connector | 1x male D-Sub 9 (X6) |
Interface type (Three-in-one) | • RS-232 full-duplex serial port • RS-422 full-duplex isolated serial port • RS-485 half-duplex isolated serial port | |
| Baud rate | ≤ 921.6 kbps | |
| Isolation | 2.5 kVrms | |
| CAN Interface | Connector | 1x male D-Sub 9 (X4) |
| Interface type | CAN bus isolation interface(CAN 2.0A, CAN 2.0B, ISO 11898) | |
| Baud rate | 50 Kbps ~ 1 Mbps | |
| Isolation | 2.5 kVrms | |
| Configuration Management | Configuration tool | yacer-DMS configuration management software |
| Console interface | • Ethernet Interface • Dedicated DMS-UART interface ( with the Yacer DMS-UART-8P configuration cable ) | |
| Power Requirements | Power Supply | • LV: Nominal 24V, tolerance 9 ~ 36VDC • MV: Nominal 36V, 48V, tolerance 18 ~ 75VDC • HV: Nominal 72V, 96V, 110V, tolerance 40 ~ 160VDC |
| Isolation | >1.5 kVrms, Anti-reverse protection | |
| Power consumption | < 3 W | |
| Connector | 3 pin connector with 5mm pitch | |
| Mechanical Characteristics | Dimensions | 120 x 100 mm |
| Weight | < 200g | |
| Operating Environment | Operating temperature | -40 ~ +85℃ |
| Storage temperature | -40 ~ +85℃ | |
| Operating humidity | 5 ~ 95% RH (no condensation) |
Order Information
| TRDP-ETH-32 | 3 | -LV |
| Serial Port Definition： | ||
| • None | 0 | |
| • Full-duplex RS-232 serial port | 3 | |
| • Full-duplex RS-422 serial port | 4 | |
| • Half-duplex RS-485 serial port | 5 | |
| Supply voltage range: | ||
| • Nominal 24V, tolerance 9 ~ 36VDC | -LV | |
| • Nominal 36V, 48V, tolerance 18 ~ 75VDC | -MV | |
| • Nominal 72V, 96V, 110V, tolerance 40 ~ 160VDC | -HV | |
Documentation
TRDP-ETH Datasheet
TRDP-ETH Dual-homing Train Ethernet Card Datasheet
TRDP-ETH Functional Evaluation Validation Guide
Tools and Software
yacer-DMS Configuration Management Software
Yacer HDLC, MVB, TRDP, SDLC communication products configuration management software.
TRDP-Analyzer Debugger
TRDP protocol process data ( PD ) sending and receiving test tool software.
TRDP-Serial Debugger
Train Ethernet TRDP protocol to serial port debugging tool software.
TRDP-UDP Debugger
Train TRDP protocol to Ethernet debugging tool software.
TRDP-Acquisition Software
TRDP process data ( PD ) acquisition and display tool software.
DMS-UART
Yacer DMS-UART-8P configuration cable driver.
