Making Communication as Simple as Building Blocks.
Making Communication as Simple as Building Blocks.
2x 100M Ethernet PHY interfaces for dual-redundant TRDP protocol
1x 100M Ethernet PHY interface for TRDP-to-TCP/IP conversion
1x UART for TRDP-to-serial communication
1x CAN interface for TRDP-to-CAN bus conversion

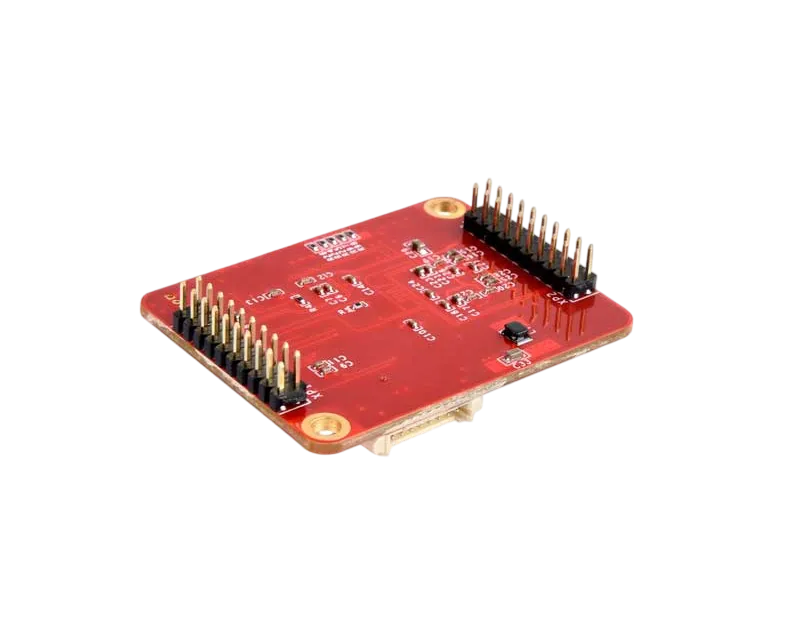

Compact size of 35 x 45 mm, 2.0mm pin header interface
+3.3V power supply, industrial wide temperature
Overview
Introduction

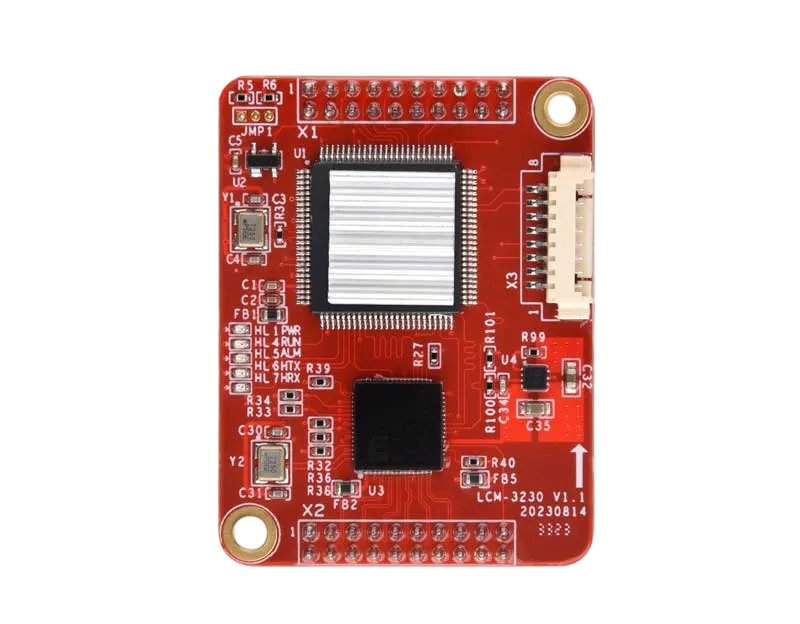

Yacer TRDP-UDP Train Dual-Homing TRDP Embedded Module is equipped with 2 TRDP Ethernet PHY interfaces, 1 TCP/IP Ethernet PHY interface, 1 UART interface, and 1 CAN interface. It supports protocol conversion between TRDP and UDP, serial, or CAN bus.

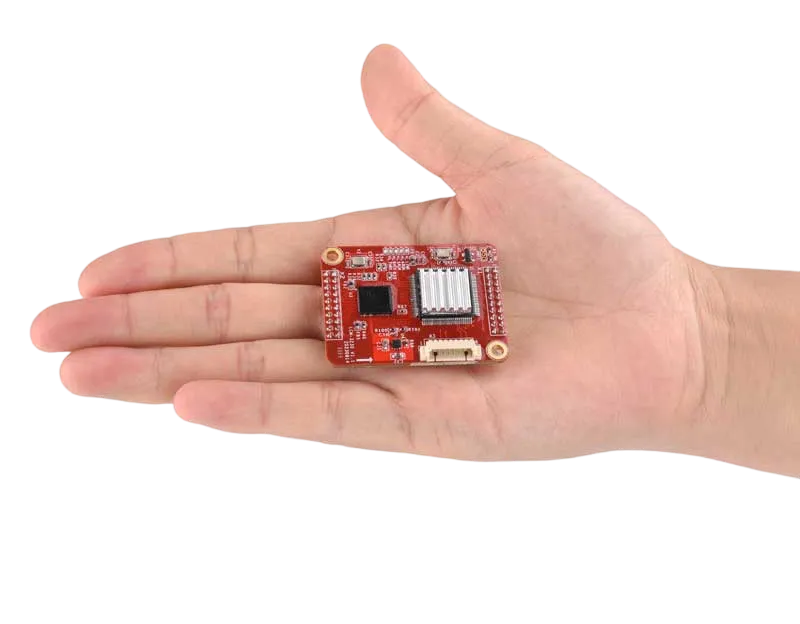

The module features a compact size of only 35 x 45 mm with 2.0 mm pitch pin header interface, and supports +3.3 V power supply with low power consumption. Designed with industrial-grade wide temperature tolerance, it offers high stability and reliability, making it suitable for embedded applications in harsh train environments.
Applications
TRDP protocol to UDP conversion
TRDP interface to serial port conversion
TRDP Ethernet to CAN bus conversion
Train Control and Management System (TCMS)
Train Communication Network (TCN)
Embedded application and development
Specifications
| Item | Parameters | Details |
| TRDP Ethernet Interface | Number | 2x 100M PHY |
| Rate | 100 Mbps full-duplex | |
| Protocol | TRDP | |
| TCP/IP Ethernet Interface | Number | 1x 100M PHY |
| Rate | 100 Mbps | |
| Protocol | TCP/IP | |
| UART Interface | Level Standard | 3.3V LVCMOS/TTL |
| Duplex Mode | Full-duplex | |
| Baud Rate | ≤ 921.6 kbps | |
| CAN Interface | Level Standard | 3.3V LVCMOS/TTL |
| Working Mode | CAN 2.0A、CAN2.0B，ISO 11898 | |
| Baud Rate | ≤ 1 Mbps | |
| Configuration Management | Configuration Tool | yacer-DMS configuration management software |
| Console Interface | Ethernet Interface Dedicated DMS-UART interface ( with the Yacer DMS-UART-8P configuration cable ) | |
| Power Requirements | Input Voltage | +3.3 VDC |
| Power Consumption | < 2 W | |
| Mechanical Characteristics | Dimensions | 35 x 45 mm |
| Weight | 25g | |
| Operating Environment | Operating temperature | -40 ~ +85℃ |
| Storage temperature | -40 ~ +85℃ | |
| Operating humidity | 5 ~ 95% RH (no condensation) |
Order Information
| Product Model | Ethernet Interface | Serial Port | CAN |
| TRDP-UDP-320 | 3x 100M PHY | 1x UART | 1x CAN |
Documentation
TRDP-UDP Datasheet
TRDP-UDP Train Ethernet Protocol Converter Module Datasheet
3D-Models-TRDP-UDP
Verify TRDP-UDP Function with Evaluation Board
Tools and Software
yacer-DMS Configuration Management Software
Yacer HDLC, MVB, TRDP, SDLC communication products configuration management software.
TRDP-Analyzer Debugger
TRDP protocol process data ( PD ) sending and receiving test tool software.
TRDP-Serial Debugger
Train Ethernet TRDP protocol to serial port debugging tool software.
TRDP-UDP Debugger
Train TRDP protocol to Ethernet debugging tool software.
TRDP-Acquisition Software
TRDP process data ( PD ) acquisition and display tool software.
DMS-UART
Yacer DMS-UART-8P configuration cable driver.
