ATC radar data communication protocol converter

2, 3x Ethernet interfaces

4, 8, 16x HDLC synchronous RS-232 serial ports

Serial, Ethernet bi-directional conversion

1U, 19-inch standard rackmount chassis

Dual power supply redundancy

Low power consumption, fanless design

Synchronous HDLC protocol converter for trains

2x Ethernet interfaces

Multiple RS-232/422/485 serial ports or CAN port

Serial port support HDLC protocol, UART mode

Realize serial port, CAN port, Ethernet port conversion

Industrial grade wide temperature, complete isolation protection

For air traffic control, train, aerospace, transportation

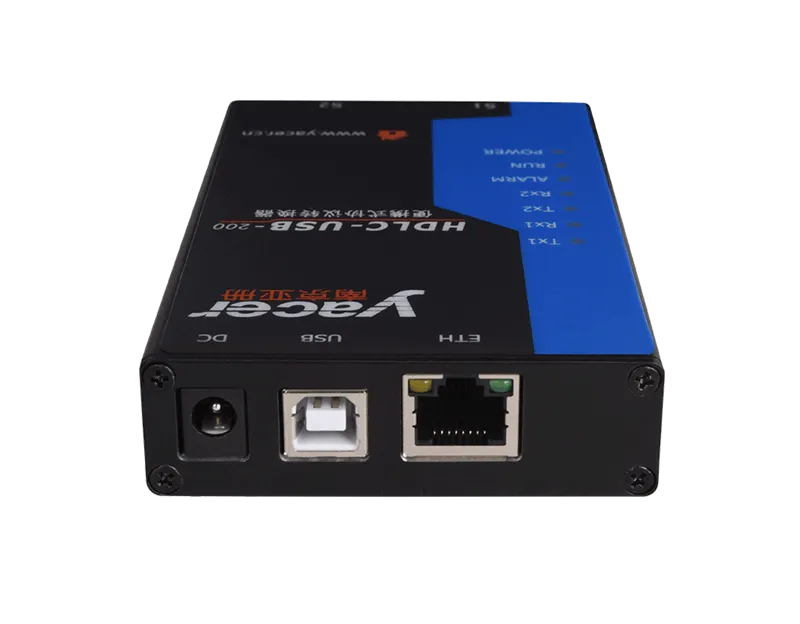

1x Ethernet interface

2x RS-232/422/485 multi-protocol serial ports

Realize serial port, Ethernet conversion

Realize synchronous HDLC, asynchronous UART conversion

Slim and compact, support USB power supply.

For aerospace measurement and control, industrial networks

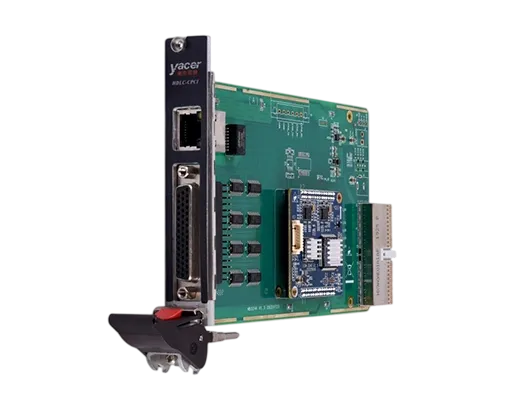

CPCI/PXI, CPCIe/PXIe 3U driver-free card

1x Ethernet Interface

4x RS-422/485 synchronous/asynchronous serial ports

Serial port support synchronous HDLC protocol, asynchronous UART

Encoding format support NRZ, NRZI, DBPL, Manchester, differential Manchester

For air traffic control, train, aerospace, industrial networks

+3.3V power supply, low power consumption embedded communication module

2x Ethernet 100M PHY interfaces

4x serial interfaces, support synchronous HDLC, asynchronous UART

Support NRZ, NRZI, DBPL, Manchester encoding

46.5 x 48 mm miniature size, 2.0mm pin interface

Train Embedded Communication Module

2x RS-485/422 synchronous/asynchronous serial ports with isolation

1x TTL/CMOS synchronous and asynchronous serial port

All serial ports support synchronous HDLC protocol and asynchronous UART.

Realize HDLC, UART conversion each other

+5V power supply, 2.54mm pin interface

Compact Synchronous HDLC Protocol Converter

Suitable for ATC, aerospace measurement and traffic control

1, 2x 100M Ethernet interfaces

4x synchronous/asynchronous serial ports, optional RS-232 or RS-422/485

Serial port support synchronous HDLC, asynchronous UART

Realize serial port, Ethernet conversion

Radar Data Distributor for ATC

Baud rate support 2400 ~ 250Kbps arbitrary rate

Support synchronous HDLC and asynchronous UART

Realize signal 1 divided into 4, 1 divided into 8

Support RS-232, RS-422

Support dual power supply redundancy

Train Embedded Communication Module

1x 100M Ethernet PHY interface

2x isolated RS-485/422 synchronous/asynchronous serial ports

1x TTL/CMOS serial port

All serial ports support synchronous HDLC protocol and asynchronous UART.

Realize HDLC, UDP protocol conversion

+5V power supply, 2.54mm pin interface
